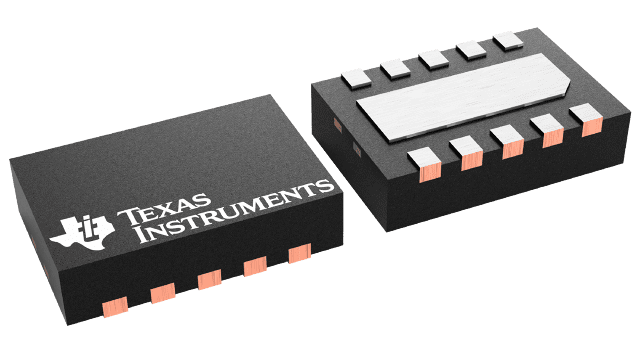

BQ25070DQCR Texas Instruments - Yeehing Electronics
1-cell, 1-A, single cell, linear charger for LiFePO4 Applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.552 |
| 100 — 249 | 1.282 |
| 250 — 999 | 0.921 |
| 1,000 + | 0.49 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Product | Charge Management |
| Battery Type | LiFePO4 |
| Output Voltage | 3.5 V |
| Output Current | 1 A |
| Operating Supply Voltage | 3.75 V to 30 V |
| Operating Supply Current | 3 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | WSON-10 |
| Packaging | Reel |
| Series | BQ25070 |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Moisture Sensitive | Yes |
| Product Type | Battery Management |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| BQ25070DQCR Datasheet |
More Information
The bq25070 is a highly integrated LiFePO4 linear battery charger targeted at space-limited portable applications. It operates from either a USB port or AC Adapter and charges a single-cell LiFePO4 battery with up to 1A of charge current. The 30V input voltage range with input over-voltage protections supports low-cost unregulated adapters.
