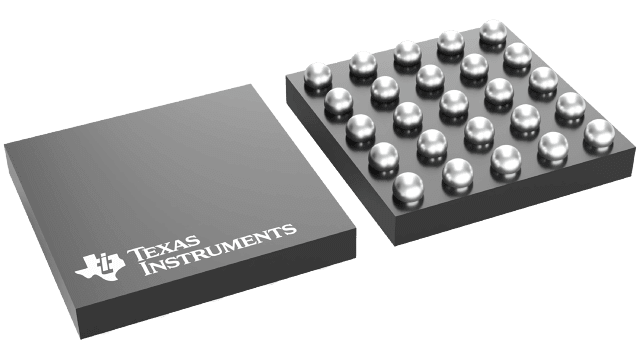

BQ25120AYFPR


YeeHing #: Y012-BQ25120AYFPR
Inventory: 3600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

BQ25120AYFPR Texas Instruments - Yeehing Electronics

300-mA linear battery charger with Power Path, integrated LDO and buck converter 1.8V default output

Pricing (USD)

Quantity Unit Price
1 — 99 2.759
100 — 249 2.418
250 — 999 1.695
1,000 + 0.96

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Battery Management
RoHS Y
Product Charge Management
Battery Type Li-Ion
Output Voltage 3.6 V to 4.65 V
Output Current 300 mA
Operating Supply Voltage 3.4 V to 5.5 V
Operating Supply Current 700 nA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Package / Case DSBGA-25
Packaging Reel
Series BQ25120A
Brand Texas Instruments
Mounting Style SMD/SMT
Product Type Battery Management
Factory Pack Quantity 3000
Subcategory PMIC - Power Management ICs
Unit Weight 0.000198 oz

For more information, please refer to datasheet

Documents

BQ25120AYFPR Datasheet

More Information

The bq25120A is a highly integrated battery charge management IC that integrates the most common functions for wearable devices: Linear charger, regulated output, load switch, manual reset with timer, and battery voltage monitor. The integrated buck converter is a high efficiency, low IQ switcher using DCS control that extends light load efficiency down to 10-µA load currents. The low quiescent current during operation and shutdown enables maximum battery life. The device supports charge currents from 5 mA to 300 mA. The input current limit, charge current, buck converter output voltage, LDO output voltage, and other parameters are programmable through the I2C interface.
