Texas Instruments
BQ25121AYFPR
BQ25121AYFPR
Regular price
$0.86 USD
Regular price
Sale price
$0.86 USD
Unit price
per
Couldn't load pickup availability

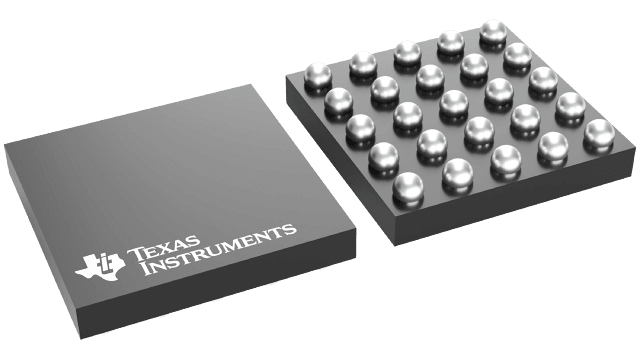

BQ25121AYFPR Texas Instruments - Yeehing Electronics
300-mA linear battery charger with Power Path, integrated LDO and buck converter 2.5V default output
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.969 |
| 100 — 249 | 2.602 |
| 250 — 999 | 1.824 |
| 1,000 + | 0.86 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Product | Charge Management |
| Battery Type | Li-Ion |
| Output Voltage | 3.6 V |
| Output Current | 300 mA |
| Operating Supply Voltage | 5 V |
| Operating Supply Current | 1 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Package / Case | DSBGA-25 |
| Packaging | Reel |
| Series | BQ25121A |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Product Type | Battery Management |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| BQ25121AYFPR Datasheet |
More Information
The BQ25121A is a highly integrated battery charge management IC that integrates the most common functions for wearable devices: Linear charger, regulated output, load switch, manual reset with timer, and battery voltage monitor. The integrated buck converter is a high efficiency, low IQ switcher using DCS-Control™ that extends light load efficiency down to 10-µA load currents. The low quiescent current during operation and shutdown enables maximum battery life. The device supports charge currents from 5 mA to 300 mA.
