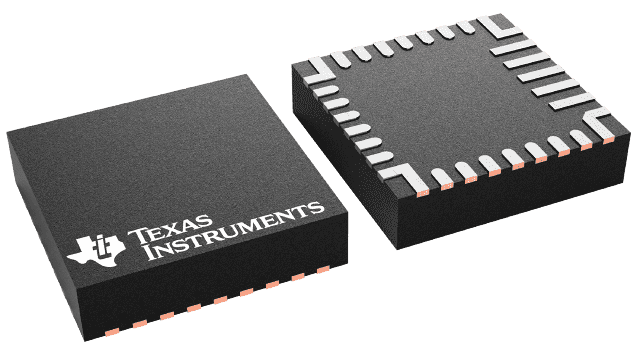

BQ25798RQMR Texas Instruments - Yeehing Electronics

I²C controlled, 1-4-cell, 5-A buck-boost solar battery charger with dual-input selector and MPPT

Pricing (USD)

Quantity	Unit Price
1 — 99	4.214
100 — 249	3.435
250 — 999	2.7
1,000 +	1.60

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

BQ25798RQMR Datasheet

More Information

The BQ25798 is a fully integrated switch-mode buck-boost charger for 1-4 cell Li-ion batteries and Li-polymer batteries. The integration includes 4 switching MOSFETs, input and charging current sensing circuits, the battery FET and all the loop compensation of the buck-boost converter. It uses NVDC power path management, regulating the system not dropping below a configurable minimum system voltage. When system power exceeds the input source rating, battery supplement mode supports the system without overloading the input source. BQ25798It also maximizes power from photovoltaic panels using its built-in VOC scaling MPPT algorithm.BQ25798 supports ultra-fast switchover from the adapter to a converted battery voltage in Backup Mode.
