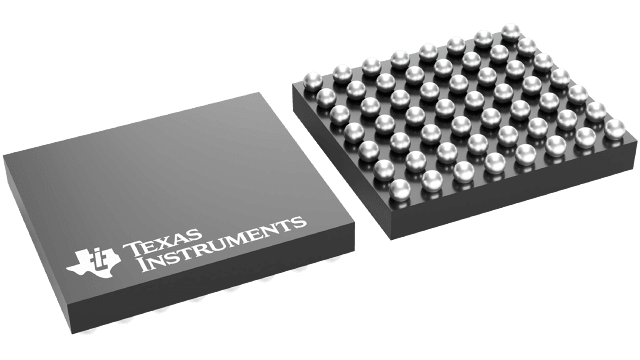

BQ25970YFFT Texas Instruments - Yeehing Electronics
I2C 1cell 8A switched cap battery charger for Parallel Charging Application and external OVP support
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.1 |
| 100 — 249 | 4.158 |
| 250 — 999 | 3.268 |
| 1,000 + | 1.94 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Product | Charge Management |
| Battery Type | Li-Ion, Li-Polymer, LiFePO4, Li-Phosphate |
| Output Current | 9 A |
| Operating Supply Voltage | 3.2 V to 12 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | DSBGA-56 |
| Packaging | Reel |
| Series | BQ25970 |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Product Type | Battery Management |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000392 oz |
For more information, please refer to datasheet
Documents
| BQ25970YFFT Datasheet |
More Information
The BQ2597x is a 97% efficient, 8-A battery charging solution using a switched cap architecture. This architecture and the integrated FETs are optimized to enable a 50% duty cycle, allowing the cable current to be half the current delivered to the battery, reducing the losses over the charging cable as well as limiting the temperature rise in the application.
