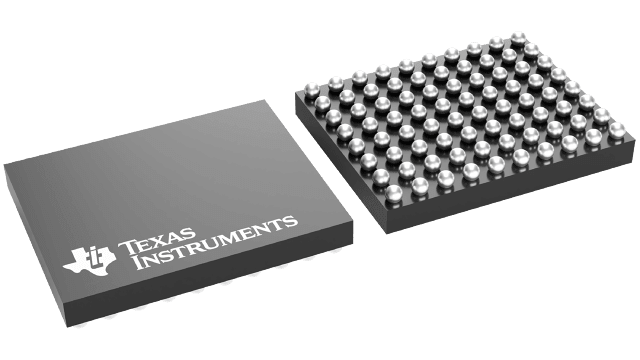

BQ25980YFFR Texas Instruments - Yeehing Electronics

I2C controlled, 2-cell, 8-A switched cap parallel battery charger with integrated protection

Pricing (USD)

Quantity	Unit Price
1 — 99	6.44
100 — 249	5.25
250 — 999	4.127
1,000 +	2.45

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

BQ25980YFFR Datasheet

More Information

The BQ25980 is a 98.6% peak efficiency, 8-A battery charging solution using dual-phase switched cap architecture for 2-cell Li-ion battery. The switched cap architecture allows the cable current to be half the charging current, reducing the cable power loss and limiting temperature rise. The dual-phase architecture increases charging efficiency and reduces the input and output cap requirements. When used with a main charger such as BQ25790, the system enables the fast charging at the very low power loss from pre-charge through constant current (CC), constant voltage (CV), and termination.
