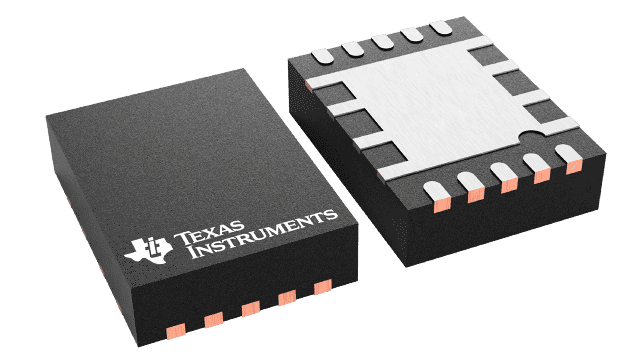

BQ27000DRKR Texas Instruments - Yeehing Electronics
Single-Cell Li-Ion and Li-Pol Battery Gas Gauge IC
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 5.795 |
100 — 249 | 5.078 |
250 — 999 | 3.56 |
1,000 + | 2.30 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Battery Management |
RoHS | Y |
Battery Type | Li-Ion, Li-Polymer |
Operating Supply Voltage | 2.6 V to 4.5 V |
Minimum Operating Temperature | - 20 C |
Maximum Operating Temperature | + 70 C |
Package / Case | VSON-10 |
Packaging | Reel |
Capacity | 300 mAh to 6000 mAh |
Height | 0.88 mm |
Length | 4 mm |
Series | BQ27000 |
Type | Gas Gauge |
Width | 3 mm |
Brand | Texas Instruments |
Mounting Style | SMD/SMT |
Moisture Sensitive | Yes |
Product Type | Battery Management |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.001386 oz |
For more information, please refer to datasheet
Documents
BQ27000DRKR Datasheet |
More Information
The bqJUNIOR series are highly accurate stand-alone single-cell Li-Ion and Li-Pol battery capacity monitoring and reporting devices targeted at space-limited, portable applications. The IC monitors a voltage drop across a small current sense resistor connected in series with the battery to determine charge and discharge activity of the battery. Compensations for battery temperature, self-discharge, and discharge rate are applied to the capacity measurments to provide available time-to-empty information across a wide range of operating conditions. Battery capacity is automatically recalibrated, or learned, in the course of a discharge cycle from full to empty. Internal registers include current, capacity, time-to-empty, state-of-charge, cell temperature and voltage, status, and more.
