Texas Instruments
BQ27010DRKR
BQ27010DRKR
Couldn't load pickup availability

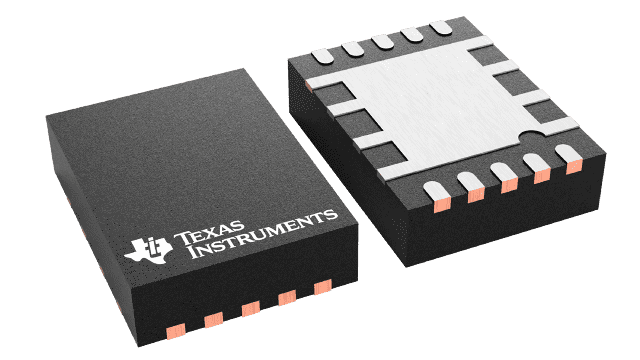

BQ27010DRKR Texas Instruments - Yeehing Electronics
Li-ion and Li-pol battery gas gauge IC for portable applications with HDQ
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.262 |
| 100 — 249 | 5.487 |
| 250 — 999 | 3.847 |
| 1,000 + | 2.17 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Product | Fuel Gauges |
| Battery Type | Li-Ion, Li-Polymer |
| Operating Supply Voltage | 2.6 V to 4.5 V |
| Minimum Operating Temperature | - 20 C |
| Maximum Operating Temperature | + 70 C |
| Package / Case | VSON-10 |
| Packaging | Reel |
| Capacity | 300 mAh to 6000 mAh |
| Height | 0.88 mm |
| Length | 4 mm |
| Series | BQ27010 |
| Type | Gas Gauge |
| Width | 3 mm |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Moisture Sensitive | Yes |
| Product Type | Battery Management |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001386 oz |
For more information, please refer to datasheet
Documents
| BQ27010DRKR Datasheet |
More Information
The bqJUNIOR series are highly accurate stand-alone single-cell Li-Ion and Li-Pol battery capacity monitoring and reporting devices targeted at space-limited, portable applications. The IC monitors a voltage drop across a small current sense resistor connected in series with the battery to determine charge and discharge activity of the battery. Compensations for battery age, temperature, self-discharge, and discharge rate are applied to the capacity measurments to provide available time-to-empty information across a wide range of operating conditions. Battery capacity is automatically recalibrated, or learned, in the course of a discharge cycle from full to empty. Internal registers include current, capacity, time-to-empty, state-of-charge, cell temperature and voltage, status, and more.
