Texas Instruments
BQ27320YZFT
BQ27320YZFT
Regular price
$0.92 USD
Regular price
Sale price
$0.92 USD
Unit price
per
Couldn't load pickup availability
BQ27320YZFT Texas Instruments - Yeehing Electronics
Single cell pack/System-side CEDV battery fuel (gas) gauge
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.642 |
| 100 — 249 | 2.315 |
| 250 — 999 | 1.623 |
| 1,000 + | 0.92 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Product | Fuel Gauges |
| Battery Type | Single Cell |
| Output Voltage | - |
| Output Current | - |
| Operating Supply Voltage | 2.8 V to 4.5 V |
| Operating Supply Current | 118 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |

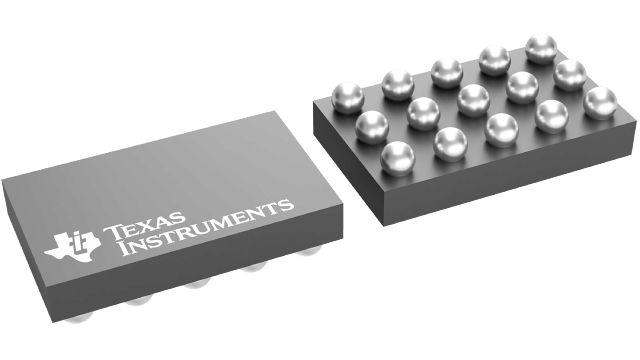

| Package / Case | DSBGA-15 |
| Packaging | Reel |
| Capacity | 100 mAh to 14500 mAh |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | BQ27320 |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Development Kit | - |
| Pd - Power Dissipation | - |
| Product Type | Battery Management |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| BQ27320YZFT Datasheet |
More Information
The Texas Instruments single-cell bq27320 battery fuel gauge requires very minimal configuration and system microcontroller firmware development, leading to quick system bring-up. The bq27320 uses the Compensated End-of-Discharge Voltage (CEDV) gas gauging algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-of-charge (%), runtime-to-empty (min), battery voltage (mV), temperature (°C) and state-of-health (%).
