Texas Instruments
BQ27520YZFR-G4
BQ27520YZFR-G4
Regular price
$1.03 USD
Regular price
Sale price
$1.03 USD
Unit price
per
Couldn't load pickup availability

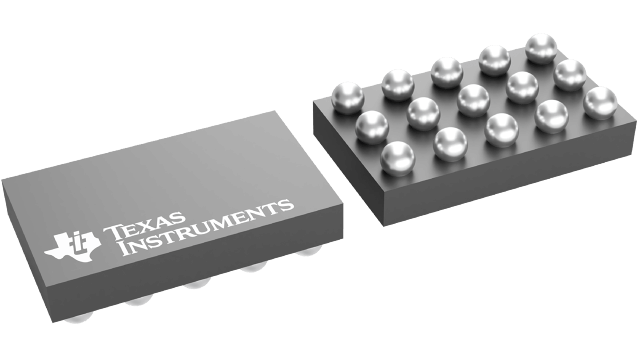

BQ27520YZFR-G4 Texas Instruments - Yeehing Electronics
System side Impedance Track™ fuel gauge with integrated LDO.
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.485 |
| 100 — 249 | 3.053 |
| 250 — 999 | 2.141 |
| 1,000 + | 1.03 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Product | Fuel Gauges |
| Battery Type | Li-Ion, Li-Polymer |
| Output Voltage | 2.6 V |
| Operating Supply Voltage | 2.8 V to 4.5 V |
| Operating Supply Current | 118 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | DSBGA-15 |
| Packaging | Reel |
| Capacity | 300 mAh to 32000 mAh |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | BQ27520-G4 |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Product Type | Battery Management |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Part # Aliases | HPA02254YZFR |
| Unit Weight | 0.000201 oz |
For more information, please refer to datasheet
Documents
| BQ27520YZFR-G4 Datasheet |
More Information
The Texas Instruments BQ27520-G4 system-side Li-ion battery fuel gauge is a microcontroller peripheral that provides fuel gauging for single-cell Li-ion battery packs. The device requires little system microcontroller firmware development. The fuel gauge resides on the main board of the system and manages an embedded battery (non-removable) or a removable battery pack.
