Texas Instruments
BQ27530YZFR-G1
BQ27530YZFR-G1
Regular price
$0.75 USD
Regular price
Sale price
$0.75 USD
Unit price
per
Couldn't load pickup availability

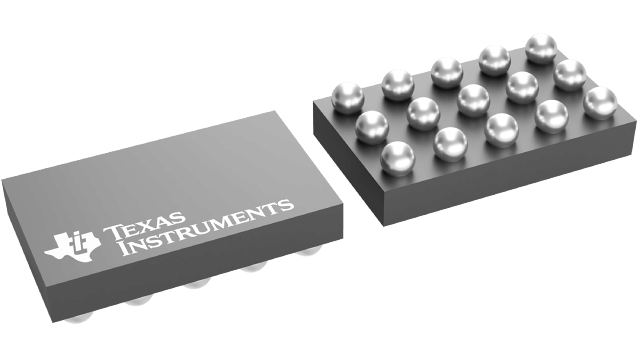

BQ27530YZFR-G1 Texas Instruments - Yeehing Electronics
System-side Impedance-Track fuel (gas) gauge with direct battery connection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.159 |
| 100 — 249 | 1.892 |
| 250 — 999 | 1.327 |
| 1,000 + | 0.75 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Product | Fuel Gauges |
| Battery Type | Li-Ion, Li-Polymer |
| Output Voltage | 0.4 V |
| Operating Supply Voltage | 2.8 V to 4.5 V |
| Operating Supply Current | 118 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | DSBGA-15 |
| Packaging | Reel |
| Capacity | 300 mAh to 8000 mAh |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | BQ27530-G1 |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Development Kit | BQ27530EVM |
| Product Type | Battery Management |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| BQ27530YZFR-G1 Datasheet |
More Information
The Texas Instruments bq27530-G1 system-side Li-Ion Battery Management Unit is a microcontroller peripheral that provides Impedance Track™ fuel gauging and charging control for single-cell Li-Ion battery packs. The device requires little system microcontroller firmware development. Together with bq2416x Single-Cell Switchmode Charger, the bq27530-G1 manages an embedded battery (non-removable) or a removable battery pack.
