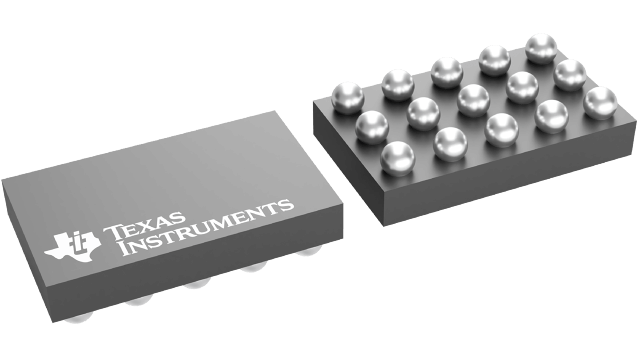

BQ27546YZFR-G1 Texas Instruments - Yeehing Electronics
Single cell Impedance Track™ pack side fuel gauge with DSBGA package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.026 |
| 100 — 249 | 0.899 |
| 250 — 999 | 0.63 |
| 1,000 + | 0.36 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Product | Fuel Gauges |
| Battery Type | Li-Ion |
| Output Voltage | 2.5 V |
| Operating Supply Voltage | 2.8 V to 4.5 V |
| Operating Supply Current | 118 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | DSBGA-15 |
| Packaging | Reel |
| Capacity | 14500 mAh |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | BQ27546-G1 |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Product Type | Battery Management |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| BQ27546YZFR-G1 Datasheet |
More Information
The bq27546-G1 Li-Ion battery fuel gauge is a microcontroller peripheral that provides fuel gauging for single-cell Li-Ion battery packs. The device requires minimal system microcontroller firmware development for accurate battery fuel gauging. The bq27546-G1 resides within the battery pack or on the system’s main-board with an embedded battery (non-removable).
