Texas Instruments

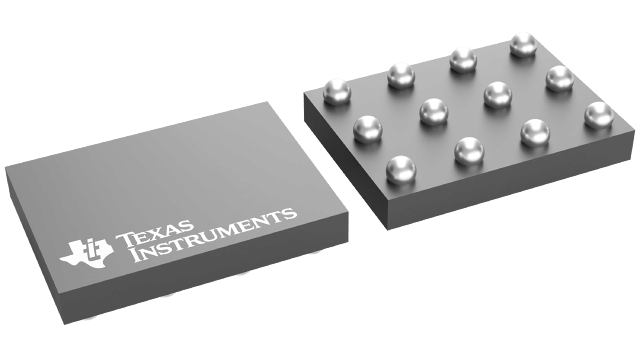

BQ27Z561YPHR
BQ27Z561YPHR
Regular price
$0.49 USD
Regular price
Sale price
$0.49 USD
Unit price
per
Couldn't load pickup availability
BQ27Z561YPHR Texas Instruments - Yeehing Electronics
Impedance Track™ integrated circuit gas gauge solution for 1-series
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.568 |
| 100 — 249 | 1.295 |
| 250 — 999 | 0.93 |
| 1,000 + | 0.49 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| Product | Fuel Gauges |
| Battery Type | Li-Ion, Li-Polymer |
| Output Voltage | 1.8 V |
| Operating Supply Voltage | 5.5 V |
| Operating Supply Current | 60 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | DSBGA-12 |
| Packaging | Reel |
| Capacity | 30000 mAh |
| Series | BQ27Z561-R1 |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Product Type | Battery Management |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| BQ27Z561YPHR Datasheet |
More Information
The Texas Instruments BQ27Z561 Impedance Track™ gas gauge solution is a highly integrated, accurate 1-series cell gas gauge with a flash programmable custom reduced instruction-set CPU (RISC) and SHA-256 authentication for Li-Ion and Li-Polymer battery packs. The 1-series cell capability includes parallel cells for increased capacity.
