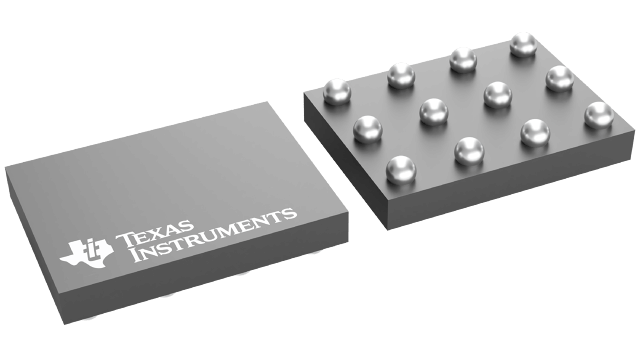

BQ27Z561YPHT Texas Instruments - Yeehing Electronics

Impedance Track™ integrated circuit gas gauge solution for 1-series

Pricing (USD)

Quantity	Unit Price
1 — 99	2.333
100 — 249	2.044
250 — 999	1.433
1,000 +	0.81

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Battery Management
Product	Fuel Gauges
Battery Type	Li-Ion, Li-Polymer
Output Voltage	1.8 V
Operating Supply Voltage	5.5 V
Operating Supply Current	60 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Package / Case	DSBGA-12
Packaging	Reel
Capacity	30000 mAh
Series	BQ27Z561-R1
Brand	Texas Instruments
Mounting Style	SMD/SMT
Product Type	Battery Management
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

BQ27Z561YPHT Datasheet

More Information

The Texas Instruments BQ27Z561 Impedance Track™ gas gauge solution is a highly integrated, accurate 1-series cell gas gauge with a flash programmable custom reduced instruction-set CPU (RISC) and SHA-256 authentication for Li-Ion and Li-Polymer battery packs. The 1-series cell capability includes parallel cells for increased capacity.
