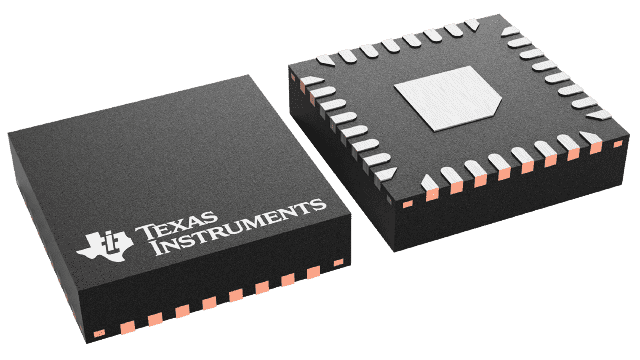

BQ40Z50RSMR Texas Instruments - Yeehing Electronics

1-4 series Li-ion battery pack manager | battery fuel (gas) gauge

Pricing (USD)

Quantity	Unit Price
1 — 99	3.227
100 — 249	2.631
250 — 999	2.068
1,000 +	1.23

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Battery Management
RoHS	Y
Product	Fuel Gauges
Battery Type	Li-Ion, Li-Polymer
Output Voltage	26 V
Operating Supply Voltage	2.2 V to 26 V
Operating Supply Current	336 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Package / Case	VQFN-32
Packaging	Reel
Operating Temperature Range	- 40 C to + 85 C
Series	BQ40Z50-R1
Brand	Texas Instruments
Mounting Style	SMD/SMT
Development Kit	BQ40Z50EVM-561
Moisture Sensitive	Yes
Product Type	Battery Management
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.002547 oz

For more information, please refer to datasheet

Documents

BQ40Z50RSMR Datasheet

More Information

The BQ40Z50 device, incorporating patented Impedance Track™ technology, is a fully integrated, single-chip, pack-based solution that provides a rich array of features for gas gauging, protection, and authentication for 1-series, 2-series, 3-series, and 4-series cell Li-Ion and Li-Polymer battery packs.
