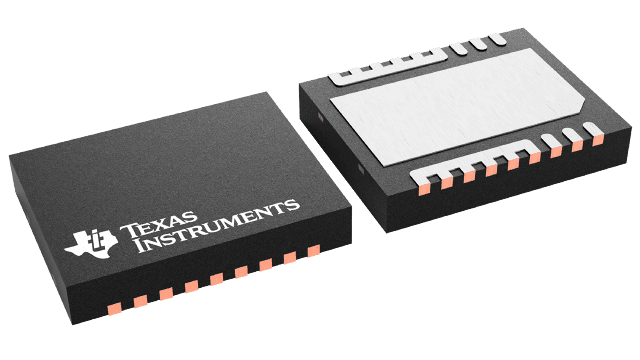

BQ500101DPCT Texas Instruments - Yeehing Electronics

NexFET Power Stage

Pricing (USD)

Quantity	Unit Price
1 — 99	1.584
100 — 249	1.308
250 — 999	0.94
1,000 +	0.49

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-40
Maximum Operating Temperature	125
Factory Pack Quantity	250
Package | Pins	VSON-CLIP (DPC) | 8

For more information, please refer to datasheet

Documents

BQ500101DPCT Datasheet

More Information

The bq500101 NexFET Power Stage is optimized for wireless power applications covering the WPC v1.2 medium power specification. The device can be used for both the rail voltage control in fixed frequency transmitter types as well as the coil drivers for both fixed and variable frequency types. This combination produces a high-current, high-efficiency, and high-speed switching device in a small 3.5 × 4.5 mm outline package. In addition, the PCB footprint is optimized to help reduce design time and simplify the completion of the overall system design.
