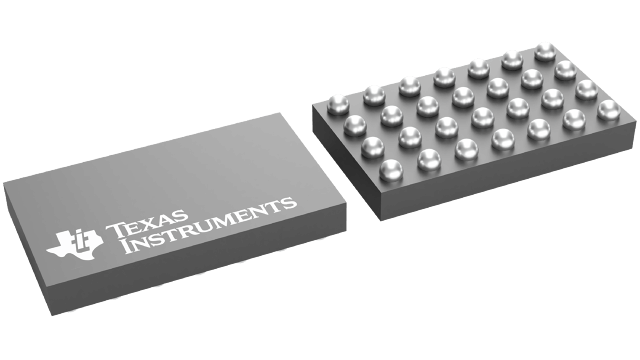

BQ51003YFPT Texas Instruments - Yeehing Electronics

BQ51003 Wireless power Receiver

Pricing (USD)

Quantity	Unit Price
1 — 99	1.164
100 — 249	1.02
250 — 999	0.715
1,000 +	0.40

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Wireless Charging ICs
RoHS	Y
Standard	WPC 1.1
Product	Receiver
Output Voltage	5 V
Output Current	500 mA
Output Power	2.5 W
Operating Supply Voltage	4 V to 10 V
Operating Supply Current	500 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-28
Packaging	Reel
Operating Temperature Range	- 40 C to + 85 C
Series	BQ51003
Type	Integrated Wireless Power Supply Receiver
Brand	Texas Instruments
Product Type	Wireless Charging ICs
Factory Pack Quantity	250
Subcategory	Wireless Charging
Unit Weight	0.000205 oz

For more information, please refer to datasheet

Documents

BQ51003YFPT Datasheet

More Information

The bq51003 is an advanced, integrated, receiver IC for wireless power transfer in portable applications optimized for 2.5-W and below applications. The device provides the AC-DC power conversion while integrating the digital control required to comply with the Qi v1.2 communication protocol. Together with the bq500212A transmitter controller, the bq51003 enables a complete contact-less power transfer system for a wireless power supply solution. By using near-field inductive power transfer, the receiver coil embedded in the portable device receives the power transmitted by the transmitter coil through mutually coupled inductors. The AC signal from the receiver coil is then rectified and regulated to be used as a power supply for down-system electronics. Global feedback is established from the secondary to the transmitter to stabilize the power transfer process through back-scatter modulation. This feedback is established by using the Qi v1.2 communication protocol supporting up to 2.5-W applications.
