Texas Instruments
BQ51010BYFPR
BQ51010BYFPR
Regular price
$1.16 USD
Regular price
Sale price
$1.16 USD
Unit price
per
Couldn't load pickup availability

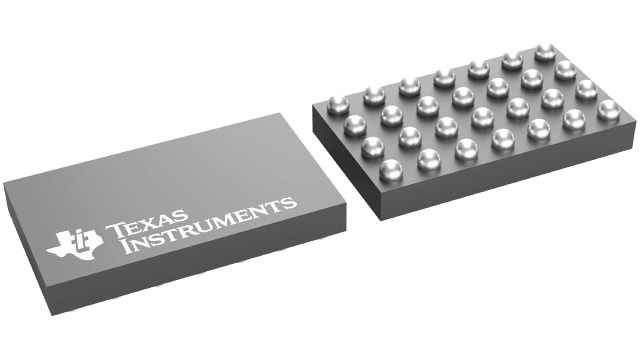

BQ51010BYFPR Texas Instruments - Yeehing Electronics
Highly integrated Wireless Receiver Qi (WPC V1.1) Compliant power Supply
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.353 |
| 100 — 249 | 2.938 |
| 250 — 999 | 2.06 |
| 1,000 + | 1.16 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Wireless Charging ICs |
| RoHS | Y |
| Product | Receiver |
| Output Voltage | 7 V |
| Output Current | 1.5 A |
| Output Power | 5 W |
| Operating Supply Voltage | 4 V to 10 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | DSBGA-28 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | BQ51010B |
| Brand | Texas Instruments |
| Development Kit | BQ51010BEVM-764 |
| Product Type | Wireless Charging ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Wireless Charging |
For more information, please refer to datasheet
Documents
| BQ51010BYFPR Datasheet |
More Information
The bq51010B is a family of advanced, flexible, secondary-side devices for wireless power transfer in portable applications. The bq51010B devices provide the AC-DC power conversion and regulation while integrating the digital control required to comply with the Qi v1.1 communication protocol. Together with the bq50xxx primary-side controller, the bq51010B enables a complete contact-less power transfer system for a wireless power supply solution. Global feedback is established from the secondary to the primary to control the power transfer process using the Qi v1.1 protocol.
