BQ51013AYFPT Texas Instruments - Yeehing Electronics

Integrated Wireless power Receiver Solution, Qi (Wireless power Consortium) Compliant

Pricing (USD)

Quantity	Unit Price
1 — 99	4.145
100 — 249	3.632
250 — 999	2.547
1,000 +	1.44

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Wireless Charging ICs
RoHS	Y
Standard	WPC 1.0
Product	Receiver
Output Voltage	5 V
Output Current	1.5 A
Operating Supply Voltage	4 V to 10 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT

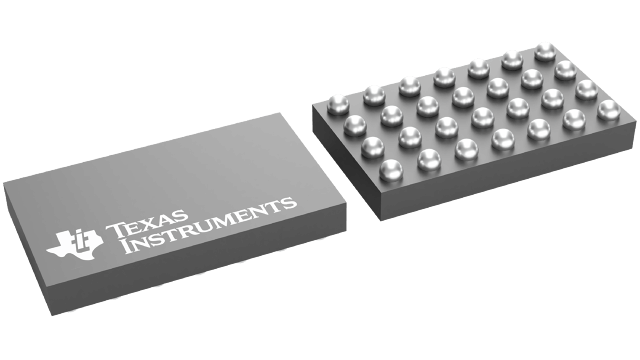

Package / Case	DSBGA-28
Packaging	Reel
Operating Temperature Range	0 C to + 125 C
Series	BQ51013A
Type	Power Supply IC
Brand	Texas Instruments
Product Type	Wireless Charging ICs
Factory Pack Quantity	250
Subcategory	Wireless Charging
Unit Weight	0.000205 oz

For more information, please refer to datasheet

Documents

BQ51013AYFPT Datasheet

More Information

The bq5101x is an advanced, integrated, receiver IC for wireless power transfer in portable applications. The device provides the AC/DC power conversion while integrating the digital control required to comply with the Qi v1.0 communication protocol. Together with the bq500210 transmitter controller, the bq5101x enables a complete contact-less power transfer system for a wireless power supply solution. By using near-field inductive power transfer, the receiver coil embedded in the portable device receives the power transmitted by the transmitter coil via mutually coupled inductors. The AC signal from the receiver coil is then rectified and regulated to be used as a power supply for down-system electronics. Global feedback is established from the secondary to the transmitter in order to stabilize the power transfer process via back-scatter modulation. This feedback is established by using the Qi v1.0 communication protocol supporting up to 5 W applications.
