Texas Instruments
BQ51013BYFPR
BQ51013BYFPR
Couldn't load pickup availability

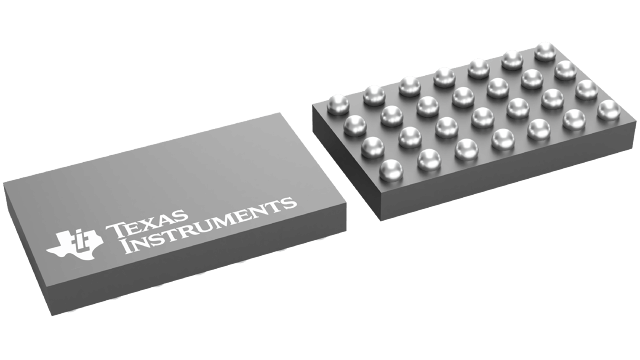

BQ51013BYFPR Texas Instruments - Yeehing Electronics
WPC 1.1 Compatible Fully integrated Wireless power Receiver IC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.525 |
| 100 — 249 | 2.213 |
| 250 — 999 | 1.551 |
| 1,000 + | 0.88 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Wireless Charging ICs |
| RoHS | Y |
| Standard | WPC 1.1 |
| Product | Receiver |
| Output Voltage | 5 V |
| Output Current | 1.5 A |
| Output Power | 5 W |
| Operating Supply Voltage | 4 V to 10 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 125 C |
| Package / Case | DSBGA-28 |
| Packaging | Reel |
| Operating Temperature Range | 0 C to + 125 C |
| Series | BQ51013B |
| Brand | Texas Instruments |
| Product Type | Wireless Charging ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Wireless Charging |
| Unit Weight | 0.000205 oz |
For more information, please refer to datasheet
Documents
| BQ51013BYFPR Datasheet |
More Information
The BQ51013B device is a single-chip, advanced, flexible, secondary-side device for wireless power transfer in portable applications capable of providing up to 5 W. The BQ51013B devices provide the receiver (RX) AC-to-DC power conversion and regulation while integrating the digital control required to comply with the Wireless Power Consortium (WPC) Qi v1.2 communication protocol. Together with the BQ50012A primary-side controller (or other Qi transmitter), the BQ51013B enables a complete contactless power transfer system for a wireless power supply solution. Global feedback is established from the secondary to the primary to control the power transfer process using the Qi v1.2 protocol.
