Texas Instruments

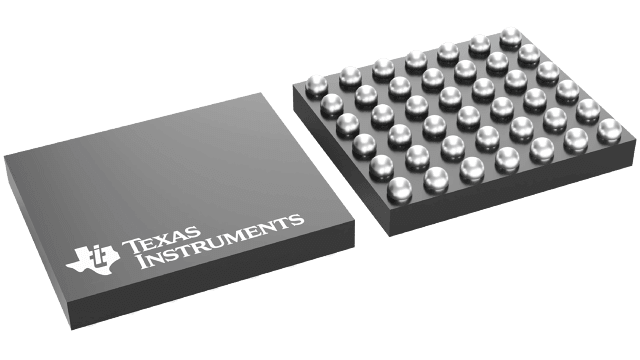

BQ51020YFPR
BQ51020YFPR
Couldn't load pickup availability
BQ51020YFPR Texas Instruments - Yeehing Electronics
5-W (WPC) single-Chip Wireless power Receiver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.892 |
| 100 — 249 | 3.173 |
| 250 — 999 | 2.494 |
| 1,000 + | 1.48 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Wireless Charging ICs |
| RoHS | Y |
| Standard | WPC 1.1 |
| Product | Receiver |
| Output Voltage | 4.5 V to 8 V |
| Output Power | 5 W |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | BQ51020 |
| Brand | Texas Instruments |
| Product Type | Wireless Charging ICs |
| Factory Pack Quantity | 3000 |
| Subcategory | Wireless Charging |
| Unit Weight | 0.000321 oz |
For more information, please refer to datasheet
Documents
| BQ51020YFPR Datasheet |
More Information
The bq5102x device is a fully contained wireless power receiver capable of operating with the WPC v1.1 protocol which allows a wireless power system to deliver up to 5 W to the system when used with a Qi inductive transmitter. The bq5102x device provides a single device power conversion (rectification and regulation) as well as the digital control and communication for WPC specification. With market-leading efficiency and adjustable output voltage, the bq5102x device allows for unparalleled efficiency and system optimization. I2C also allows system designers to implement interesting new features such as aligning a receiver on the transmitter surface, or detecting foreign objects on the receiver. The receiver allows for synchronous rectification, regulation and control and communication to all exist in a market leading form factor, efficiency, and solution size.
