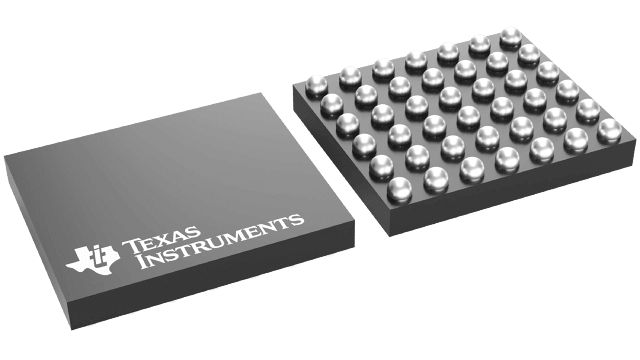

BQ51021YFPT Texas Instruments - Yeehing Electronics

5-W (WPC) single-Chip Wireless power Receiver with I2C

Pricing (USD)

Quantity	Unit Price
1 — 99	4.67
100 — 249	3.807
250 — 999	2.992
1,000 +	1.78

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Wireless Charging ICs
RoHS	Y
Standard	WPC 1.1
Product	Receiver
Output Voltage	4.5 V to 8 V
Output Current	1 A
Output Power	5 W
Operating Supply Voltage	4 V to 10 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-42
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Series	BQ51021
Brand	Texas Instruments
Battery Type	-
Product Type	Wireless Charging ICs
Factory Pack Quantity	250
Subcategory	Wireless Charging
Unit Weight	0.000321 oz

For more information, please refer to datasheet

Documents

BQ51021YFPT Datasheet

More Information

The bq5102x device is a fully contained wireless power receiver capable of operating with the WPC v1.1 protocol which allows a wireless power system to deliver up to 5 W to the system when used with a Qi inductive transmitter. The bq5102x device provides a single device power conversion (rectification and regulation) as well as the digital control and communication for WPC specification. With market-leading efficiency and adjustable output voltage, the bq5102x device allows for unparalleled efficiency and system optimization. I2C also allows system designers to implement interesting new features such as aligning a receiver on the transmitter surface, or detecting foreign objects on the receiver. The receiver allows for synchronous rectification, regulation and control and communication to all exist in a market leading form factor, efficiency, and solution size.
