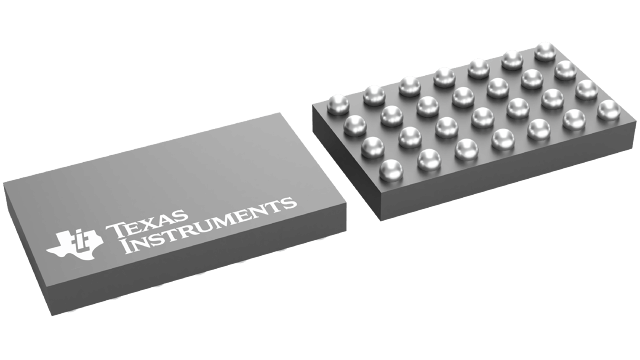

BQ51050BYFPR


YeeHing #: Y012-BQ51050BYFPR
Inventory: 5400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

BQ51050BYFPR Texas Instruments - Yeehing Electronics

Qi (WPC) Compliant Highly integrated Secondary-Side Direct Lithium Ion charger.

Pricing (USD)

Quantity Unit Price
1 — 99 2.99
100 — 249 2.62
250 — 999 1.837
1,000 + 1.04

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Wireless Charging ICs
RoHS Y
Standard WPC 1.1
Product Receiver
Output Voltage 4.2 V
Output Current 1.5 A
Output Power 5 W
Operating Supply Voltage 4 V to 10 V
Minimum Operating Temperature 0 C
Maximum Operating Temperature + 125 C
Package / Case DSBGA-28
Packaging Reel
Operating Temperature Range 0 C to + 125 C
Series BQ51050B
Brand Texas Instruments
Battery Type Li-Ion
Development Kit BQ51050BEVM-764
Product Type Wireless Charging ICs
Factory Pack Quantity 3000
Subcategory Wireless Charging
Unit Weight 0.000205 oz

For more information, please refer to datasheet

Documents

BQ51050BYFPR Datasheet

More Information

The bq5105x device is a high-efficiency, Qi-compliant wireless power receiver with an integrated Li-Ion/Li-Pol battery charge controller for portable applications. The bq5105xB devices provide efficient AC-DC power conversion, integrates the digital controller required to comply with Qi v1.2 communication protocol, and provides all necessary control algorithms needed for efficient and safe Li-Ion and Li-Pol battery charging. Together with the bq500212A transmitter-side controller, the bq5105x enables a complete wireless power transfer system for direct battery charger solutions. By using near-field inductive power transfer, the receiver coil embedded in the portable device can pick up the power transmitted by transmitter coil. The AC signal from the receiver coil is then rectified and conditioned to apply power directly to the battery. Global feedback is established from the receiver to the transmitter to stabilize the power transfer process. This feedback is established by using the Qi v1.2 communication protocol.
