BQ51051BYFPR Texas Instruments - Yeehing Electronics

integrated Wireless power Li-ion charger Receiver, Qi (WPC) Compliant

Pricing (USD)

Quantity	Unit Price
1 — 99	2.99
100 — 249	2.62
250 — 999	1.837
1,000 +	1.04

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Wireless Charging ICs
RoHS	Y
Product	Receiver
Output Voltage	4.35 V
Output Current	1.5 A
Output Power	5 W
Operating Supply Voltage	4 V to 10 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 125 C

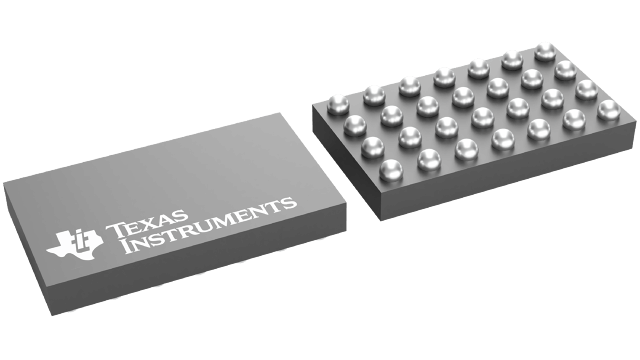

Package / Case	DSBGA-28
Packaging	Reel
Operating Temperature Range	0 C to + 125 C
Series	BQ51051B
Brand	Texas Instruments
Product Type	Wireless Charging ICs
Factory Pack Quantity	3000
Subcategory	Wireless Charging
Unit Weight	0.000205 oz

For more information, please refer to datasheet

Documents

BQ51051BYFPR Datasheet

More Information

The bq5105x device is a high-efficiency, Qi-compliant wireless power receiver with an integrated Li-Ion/Li-Pol battery charge controller for portable applications. The bq5105xB devices provide efficient AC-DC power conversion, integrates the digital controller required to comply with Qi v1.2 communication protocol, and provides all necessary control algorithms needed for efficient and safe Li-Ion and Li-Pol battery charging. Together with the bq500212A transmitter-side controller, the bq5105x enables a complete wireless power transfer system for direct battery charger solutions. By using near-field inductive power transfer, the receiver coil embedded in the portable device can pick up the power transmitted by transmitter coil. The AC signal from the receiver coil is then rectified and conditioned to apply power directly to the battery. Global feedback is established from the receiver to the transmitter to stabilize the power transfer process. This feedback is established by using the Qi v1.2 communication protocol.
