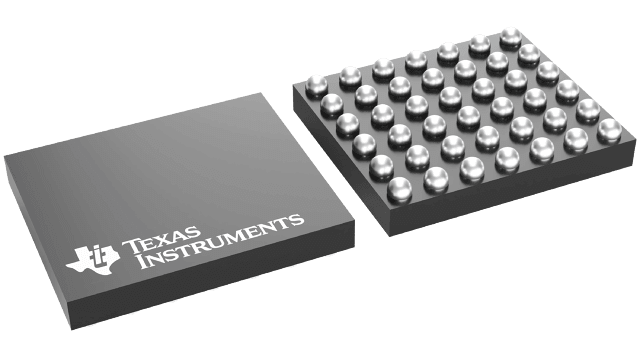

BQ51221YFPR


YeeHing #: Y012-BQ51221YFPR
Inventory: 4200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

BQ51221YFPR Texas Instruments - Yeehing Electronics

Dual mode 5-W (WPC and PMA) single Chip Wireless power Receiver

Pricing (USD)

Quantity Unit Price
1 — 99 5.097
100 — 249 4.155
250 — 999 3.266
1,000 + 1.94

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Wireless Charging ICs
RoHS Y
Product Receiver
Output Voltage 5 V
Output Current 2 A
Output Power 5 W
Operating Supply Voltage 4 V to 10 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Package / Case DSBGA-42
Packaging Reel
Operating Temperature Range - 40 C to + 85 C
Series BQ51221
Brand Texas Instruments
Development Kit BQ51221EVM-520
Product Type Wireless Charging ICs
Factory Pack Quantity 3000
Subcategory Wireless Charging
Unit Weight 0.000321 oz

For more information, please refer to datasheet

Documents

BQ51221YFPR Datasheet

More Information

The bq51221 device is a fully contained wireless power receiver capable of operating in both the WPC and PMA protocols which allows a wireless power system to work with both WPC and PMA inductive charging standards. The bq51221 device provides a single device power conversion (rectification and regulation) as well as the digital control and communication for both standards. It also has autonomous detection of protocol and requires no additional active devices. The bq51221 device complies with the WPC v1.1 and PMA communication protocol. Together with the WPC or a PMA primary-side controller, the bq51221 device enables a complete wireless power transfer system for a wireless power supply solution. The receiver allows for synchronous rectification, regulation and control and communication to all exist in a market-leading form factor, efficiency, and solution size.
