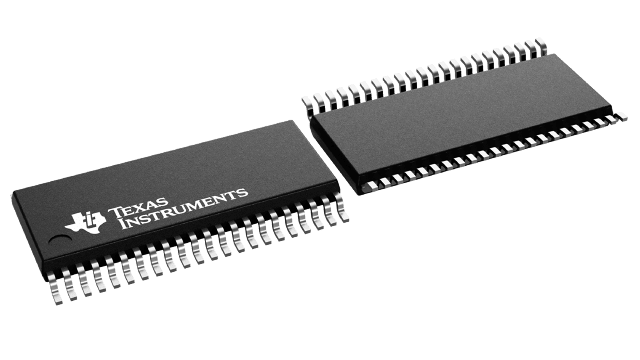

BQ7694001DBT Texas Instruments - Yeehing Electronics

9 to 15-series cell li-ion and li-phosphate battery monitor (bq76940 family)

Pricing (USD)

Quantity	Unit Price
1 — 99	4.883
100 — 249	3.981
250 — 999	3.129
1,000 +	1.86

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Battery Management
RoHS	Y
Product	Battery Protection
Battery Type	Li-Ion, Li-Polymer, LiFePO4
Output Voltage	0 V to 3.6 V
Operating Supply Voltage	6 V to 25 V
Operating Supply Current	40 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Package / Case	TSSOP-44
Packaging	Tube
Operating Temperature Range	- 40 C to + 85 C
Series	BQ76940
Brand	Texas Instruments
Mounting Style	SMD/SMT
Moisture Sensitive	Yes
Product Type	Battery Management
Factory Pack Quantity	40
Subcategory	PMIC - Power Management ICs
Unit Weight	0.004938 oz

For more information, please refer to datasheet

Documents

BQ7694001DBT Datasheet

More Information

The BQ769x0 family of robust analog front-end (AFE) devices serves as part of a complete pack monitoring and protection solution for next-generation, high-power systems, such as light electric vehicles, power tools, and uninterruptible power supplies. The BQ769x0 is designed with low power in mind: Sub-blocks within the IC may be enabled or disabled to control the overall chip current consumption, and a SHIP mode provides a simple way to put the pack into an ultra-low power state.
