Texas Instruments

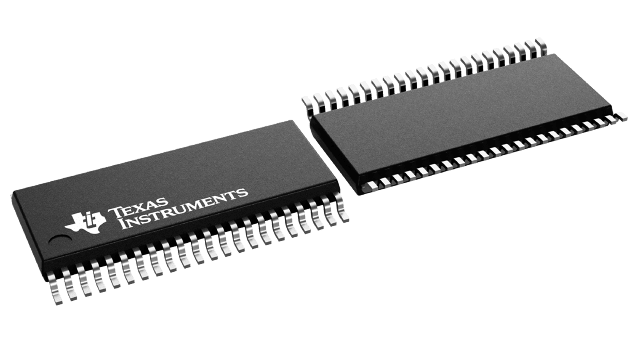

BQ7694002DBT
BQ7694002DBT
Regular price
$2.12 USD
Regular price
Sale price
$2.12 USD
Unit price
per
Couldn't load pickup availability
BQ7694002DBT Texas Instruments - Yeehing Electronics
9 to 15-series cell li-ion and li-phosphate battery monitor (bq76940 family)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.883 |
| 100 — 249 | 3.981 |
| 250 — 999 | 3.129 |
| 1,000 + | 2.12 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Product | Battery Protection |
| Battery Type | Li-Ion, Li-Polymer, LiFePO4 |
| Output Voltage | 0 V to 3.6 V |
| Operating Supply Voltage | 6 V to 25 V |
| Operating Supply Current | 40 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | TSSOP-44 |
| Packaging | Tube |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | BQ76940 |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Moisture Sensitive | Yes |
| Product Type | Battery Management |
| Factory Pack Quantity | 40 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.004914 oz |
For more information, please refer to datasheet
Documents
| BQ7694002DBT Datasheet |
More Information
The BQ769x0 family of robust analog front-end (AFE) devices serves as part of a complete pack monitoring and protection solution for next-generation, high-power systems, such as light electric vehicles, power tools, and uninterruptible power supplies. The BQ769x0 is designed with low power in mind: Sub-blocks within the IC may be enabled or disabled to control the overall chip current consumption, and a SHIP mode provides a simple way to put the pack into an ultra-low power state.
