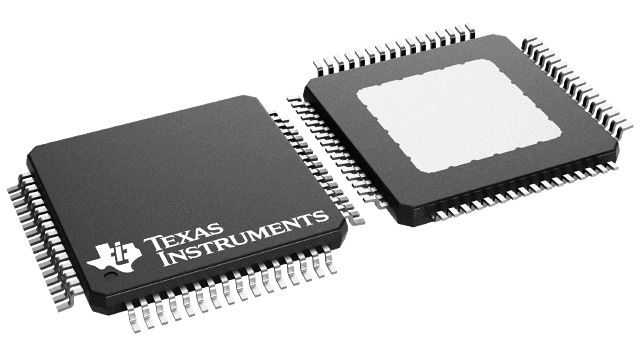

BQ76PL536ATPAPRQ1


YeeHing #: Y012-BQ76PL536ATPAPRQ1
Inventory: 5800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

BQ76PL536ATPAPRQ1 Texas Instruments - Yeehing Electronics

3 to 6 series cell lithium-ion battery monitor and secondary protection for automotive battery packs

Pricing (USD)

Quantity Unit Price
1 — 99 6.856
100 — 249 5.989
250 — 999 4.617
1,000 + 6.03

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Battery Management
RoHS Y
Product Battery Protection
Battery Type Li-Ion, Li-Polymer
Output Voltage 4.9 V to 5.1 V
Output Current 12 uA to 22 uA
Operating Supply Voltage 6 V to 30 V
Operating Supply Current 45 uA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Package / Case HTQFP-64
Qualification AEC-Q100
Packaging Reel
Operating Temperature Range - 40 C to + 105 C
Series BQ76PL536A-Q1
Brand Texas Instruments
Mounting Style SMD/SMT
Moisture Sensitive Yes
Product Type Battery Management
Factory Pack Quantity 1000
Subcategory PMIC - Power Management ICs
Unit Weight 0.017506 oz

For more information, please refer to datasheet

Documents

BQ76PL536ATPAPRQ1 Datasheet

More Information

The bq76PL536A-Q1 device is a stackable battery monitor and protector for three-to-six lithium-ion cells in series. The bq76PL536A-Q1 integrates an analog front end (AFE) along with a precision analog-to-digital converter (ADC), used to precisely measure battery cell voltages. A separate ADC is used to measure temperature.
