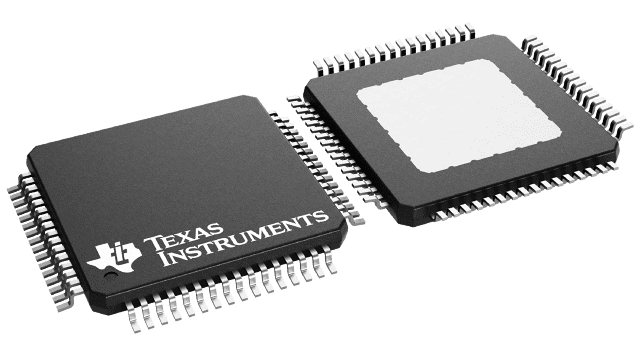

BQ76PL536ATPAPTQ1 Texas Instruments - Yeehing Electronics

3 to 6 series cell lithium-ion battery monitor and secondary protection for automotive battery packs

Pricing (USD)

Quantity	Unit Price
1 — 99	8.018
100 — 249	7.004
250 — 999	5.4
1,000 +	3.38

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Battery Management
RoHS	Y
Product	Battery Protection
Battery Type	Li-Ion, Li-Polymer
Output Voltage	4.9 V to 5.1 V
Output Current	12 uA to 22 uA
Operating Supply Voltage	6 V to 30 V
Operating Supply Current	45 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Package / Case	HTQFP-64
Qualification	AEC-Q100
Packaging	Reel
Operating Temperature Range	- 40 C to + 105 C
Series	BQ76PL536A-Q1
Brand	Texas Instruments
Mounting Style	SMD/SMT
Moisture Sensitive	Yes
Product Type	Battery Management
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.017506 oz

For more information, please refer to datasheet

Documents

BQ76PL536ATPAPTQ1 Datasheet

More Information

The bq76PL536A-Q1 device is a stackable battery monitor and protector for three-to-six lithium-ion cells in series. The bq76PL536A-Q1 integrates an analog front end (AFE) along with a precision analog-to-digital converter (ADC), used to precisely measure battery cell voltages. A separate ADC is used to measure temperature.
