BQ771600DPJR Texas Instruments - Yeehing Electronics
Family Overvoltage Protection for 2 to 4-Series Cell Li-Ion Batts w Ext Delay Capacitor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.894 |
| 100 — 249 | 0.738 |
| 250 — 999 | 0.53 |
| 1,000 + | 0.28 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Product | Battery Protection |
| Battery Type | Li-Ion, Li-Polymer |
| Operating Supply Voltage | 3 V to 20 V |
| Operating Supply Current | 1 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 110 C |

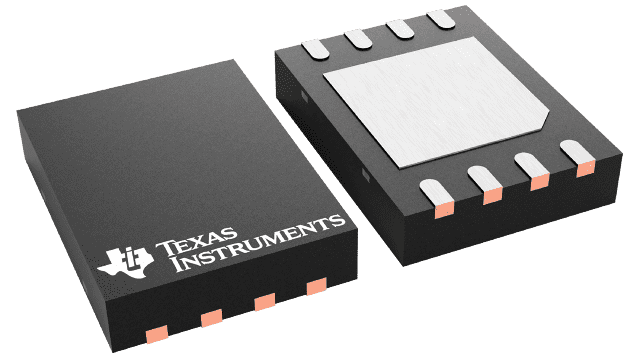

| Package / Case | WSON-8 |
| Packaging | Reel |
| Series | BQ7716 |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Moisture Sensitive | Yes |
| Product Type | Battery Management |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
| BQ771600DPJR Datasheet |
More Information
The BQ7716xy device family provides an overvoltage monitor and protector for Li-Ion battery pack systems. Each cell is monitored independently for an overvoltage condition. For quicker production-line testing, the BQ7716xy device provides a Customer Test Mode with greatly reduced delay time.
