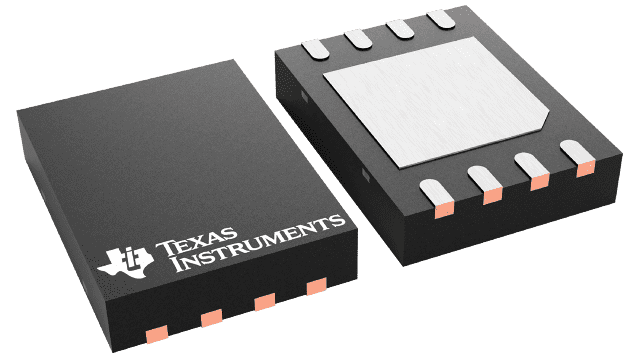

BQ771605DPJR Texas Instruments - Yeehing Electronics

Family Overvoltage Protection for 2 to 4-Series Cell Li-Ion Batts w Ext Delay Capacitor

Pricing (USD)

Quantity	Unit Price
1 — 99	0.894
100 — 249	0.738
250 — 999	0.53
1,000 +	0.32

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Battery Management
RoHS	Y
Product	Battery Protection
Battery Type	Li-Ion
Output Voltage	3.85 V
Output Current	14 mA
Operating Supply Voltage	20 V
Operating Supply Current	1 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Series	BQ7716
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Battery Management
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.001005 oz

For more information, please refer to datasheet

Documents

BQ771605DPJR Datasheet

More Information

The BQ7716xy device family provides an overvoltage monitor and protector for Li-Ion battery pack systems. Each cell is monitored independently for an overvoltage condition. For quicker production-line testing, the BQ7716xy device provides a Customer Test Mode with greatly reduced delay time.
