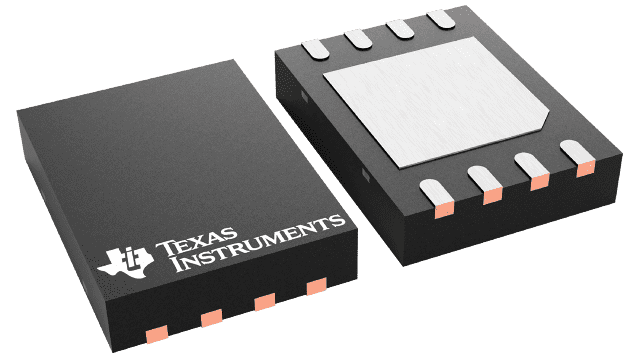

BQ771612DPJT Texas Instruments - Yeehing Electronics

Family Overvoltage Protection for 2 to 4-Series Cell Li-Ion Batts w Ext Delay Capacitor

Pricing (USD)

Quantity	Unit Price
1 — 99	1.073
100 — 249	0.886
250 — 999	0.637
1,000 +	0.34

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Battery Management
RoHS	Y
Product	Charge Management
Battery Type	Li-Ion
Output Voltage	6 V
Output Current	4.5 mA
Operating Supply Voltage	3 V to 20 V
Operating Supply Current	1 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 110 C
Package / Case	WSON-8
Packaging	Reel
Series	BQ7716
Brand	Texas Instruments
Mounting Style	SMD/SMT
Moisture Sensitive	Yes
Product Type	Battery Management
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000384 oz

For more information, please refer to datasheet

Documents

BQ771612DPJT Datasheet

More Information

The BQ7716xy device family provides an overvoltage monitor and protector for Li-Ion battery pack systems. Each cell is monitored independently for an overvoltage condition. For quicker production-line testing, the BQ7716xy device provides a Customer Test Mode with greatly reduced delay time.
