BQ771801DPJT Texas Instruments - Yeehing Electronics

Family 2-5S Overvoltage Protector with Internal Delay Timer

Pricing (USD)

Quantity	Unit Price
1 — 99	1.187
100 — 249	0.981
250 — 999	0.704
1,000 +	0.37

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Battery Management
RoHS	Y
Product	Battery Protection
Battery Type	Li-Ion, Li-Polymer
Operating Supply Voltage	3 V to 25 V
Operating Supply Current	1 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 110 C

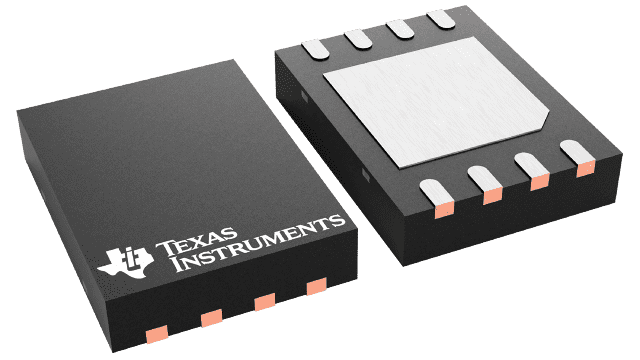

Package / Case	WSON-8
Packaging	Reel
Series	BQ7718
Brand	Texas Instruments
Mounting Style	SMD/SMT
Moisture Sensitive	Yes
Product Type	Battery Management
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000384 oz

For more information, please refer to datasheet

Documents

BQ771801DPJT Datasheet

More Information

The BQ7718xy family of products provides an overvoltage monitor and protector for Li-Ion battery pack systems. Each cell is monitored independently for an overvoltage condition. For quicker production-line testing, the BQ7718xy device provides a Customer Test Mode (CTM) with greatly reduced delay time.
