Description

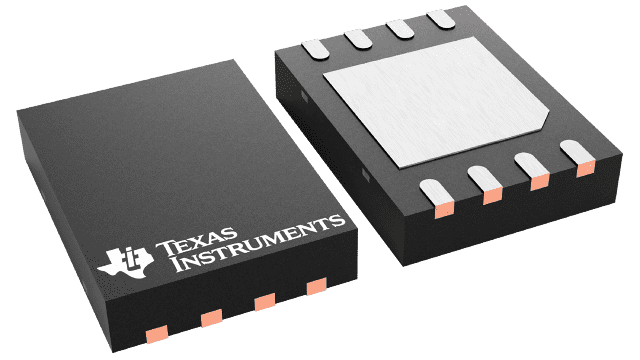

BQ771806DPJR Texas Instruments - Yeehing Electronics
Family 2-5S Overvoltage Protector with Internal Delay Timer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.845 |
| 100 — 249 | 0.65 |
| 250 — 999 | 0.478 |
| 1,000 + | 0.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Battery Management |
| RoHS | Y |
| Product | Battery Protection |
| Battery Type | Li-Ion |
| Output Voltage | 250 mV |
| Output Current | 14 mA |
| Operating Supply Voltage | 3 V to 25 V |
| Operating Supply Current | 1 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 110 C |
| Package / Case | WSON-8 |
| Packaging | Reel |
| Series | BQ7718 |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Moisture Sensitive | Yes |
| Product Type | Battery Management |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001005 oz |
For more information, please refer to datasheet
Documents
| BQ771806DPJR Datasheet |
More Information
The BQ7718xy family of products provides an overvoltage monitor and protector for Li-Ion battery pack systems. Each cell is monitored independently for an overvoltage condition. For quicker production-line testing, the BQ7718xy device provides a Customer Test Mode (CTM) with greatly reduced delay time.
