Texas Instruments
BQ79606APHPRQ1
BQ79606APHPRQ1
Regular price
$3.38 USD
Regular price
Sale price
$3.38 USD
Unit price
per
Couldn't load pickup availability

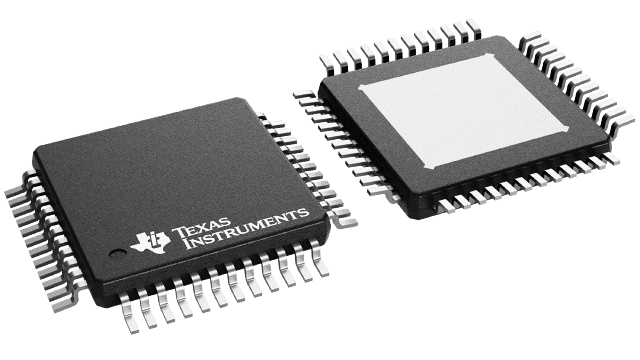

BQ79606APHPRQ1 Texas Instruments - Yeehing Electronics
6-S automotive precision battery monitor, balancer and integrated protector with ASIL-D compliance
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.889 |
| 100 — 249 | 7.247 |
| 250 — 999 | 5.696 |
| 1,000 + | 3.38 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Supervisory Circuits |
| RoHS | Y |
| Type | Voltage Monitors |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-48 |
| Number of Inputs Monitored | 6 Input |
| Output Type | Active Low, Open Drain |
| Manual Reset | No Manual Reset |
| Watchdog Timers | Watchdog |
| Battery Backup Switching | No Backup |
| Supply Voltage - Max | 30 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Chip Enable Signals | No Chip Enable |
| Development Kit | BQ79606EVM-897 |
| Product Type | Supervisory Circuits |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 5.5 V |
For more information, please refer to datasheet
Documents
| BQ79606APHPRQ1 Datasheet |
More Information
The BQ79606A-Q1 device provides simultaneous, high accuracy, channel measurements for three to six battery cells. With the inclusion of a daisy chain communication port, the BQ79606A-Q1 device is stackable (up to 64 devices) to support the large stack configurations found in battery packs for electrified automotive drive trains. Providing a Delta Sigma converter per cell input, the BQ79606A-Q1 allows simultaneous measurement of the battery voltages.
