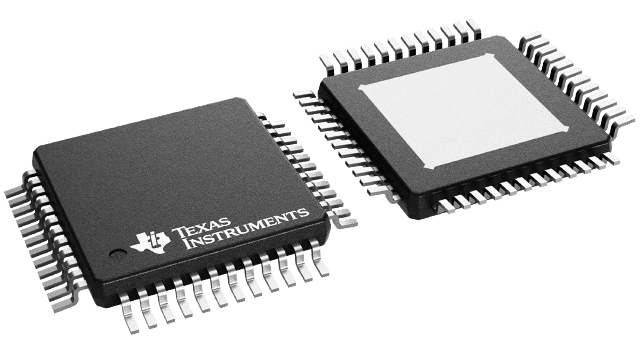

BQ79606APHPTQ1 Texas Instruments - Yeehing Electronics
6-S automotive precision battery monitor, balancer and integrated protector with ASIL-D compliance
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 9.089 |
100 — 249 | 7.939 |
250 — 999 | 6.121 |
1,000 + | 3.83 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Supervisory Circuits |
RoHS | Y |
Type | Voltage Monitors |
Mounting Style | SMD/SMT |
Package / Case | HTQFP-48 |
Number of Inputs Monitored | 6 Input |
Output Type | Active Low, Open Drain |
Manual Reset | No Manual Reset |
Watchdog Timers | Watchdog |
Battery Backup Switching | No Backup |
Supply Voltage - Max | 30 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 105 C |
Packaging | Reel |
Brand | Texas Instruments |
Chip Enable Signals | No Chip Enable |
Development Kit | BQ79606EVM-897 |
Product Type | Supervisory Circuits |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Supply Voltage - Min | 5.5 V |
For more information, please refer to datasheet
Documents
BQ79606APHPTQ1 Datasheet |
More Information
The BQ79606A-Q1 device provides simultaneous, high accuracy, channel measurements for three to six battery cells. With the inclusion of a daisy chain communication port, the BQ79606A-Q1 device is stackable (up to 64 devices) to support the large stack configurations found in battery packs for electrified automotive drive trains. Providing a Delta Sigma converter per cell input, the BQ79606A-Q1 allows simultaneous measurement of the battery voltages.
