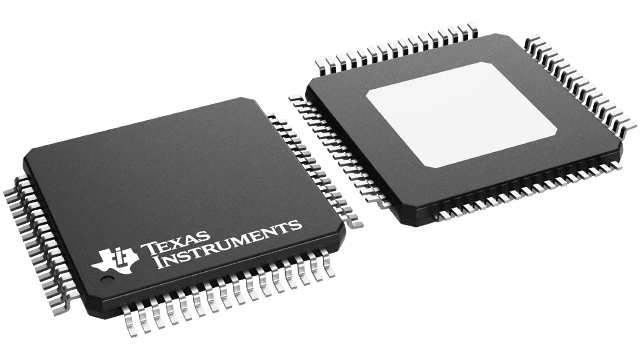

BQ79614PAPRQ1


YeeHing #: Y012-BQ79614PAPRQ1
Inventory: 6600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

BQ79614PAPRQ1 Texas Instruments - Yeehing Electronics

Automotive 14-S precision battery monitor, balancer and integrated protector with ASIL-D compliance

Pricing (USD)

Quantity Unit Price
1 — 99 11.122
100 — 249 9.715
250 — 999 7.491
1,000 + 4.69

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

BQ79614PAPRQ1 Datasheet

More Information

BQ79612-Q1, BQ79614-Q1 and BQ79616-Q1 provide high-accuracy cell voltage measurements in less than 200 µs for 12S, 14S and 16S battery modules in high-voltage battery management systems in HEV/EV. The family of monitors offers different channel options in the same package type, providing pin-to-pin compatibility and supporting high reuse of the established software and hardware across any platform. The integrated front-end filters enable the system to implement with simple, low voltage rating, differential RC filters on the cell input channels. The integrated, post-ADC, low-pass filters enable filtered, DC-like, voltage measurements for better state of charge (SOC) calculation. This device supports autonomous internal cell balancing with temperature monitoring to auto-pause and resume balancing to avoid an overtemperature condition.
