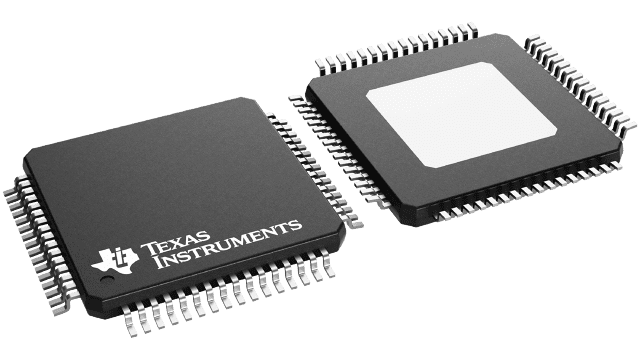

BQ79616PAPRQ1 Texas Instruments - Yeehing Electronics
16-S automotive precision battery monitor, balancer and integrated protector with ASIL-D compliance
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.574 |
| 100 — 249 | 9.237 |
| 250 — 999 | 7.122 |
| 1,000 + | 4.46 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| BQ79616PAPRQ1 Datasheet |
More Information
BQ79612-Q1, BQ79614-Q1 and BQ79616-Q1 provide high-accuracy cell voltage measurements in less than 200 µs for 12S, 14S and 16S battery modules in high-voltage battery management systems in HEV/EV. The family of monitors offers different channel options in the same package type, providing pin-to-pin compatibility and supporting high reuse of the established software and hardware across any platform. The integrated front-end filters enable the system to implement with simple, low voltage rating, differential RC filters on the cell input channels. The integrated, post-ADC, low-pass filters enable filtered, DC-like, voltage measurements for better state of charge (SOC) calculation. This device supports autonomous internal cell balancing with temperature monitoring to auto-pause and resume balancing to avoid an overtemperature condition.
