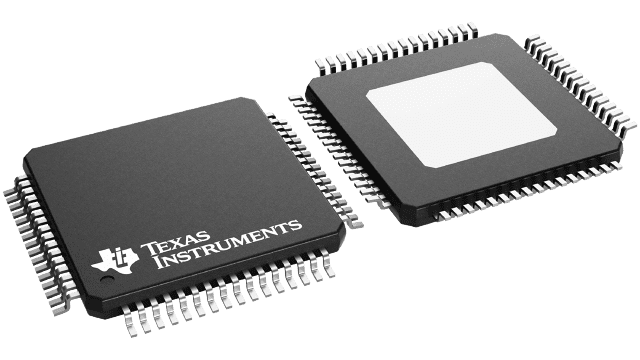

BQ79631PAPRQ1 Texas Instruments - Yeehing Electronics
Automotive high-voltage battery pack monitor with voltage, current and insulation resistance sensing
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 17.769 |
| 100 — 249 | 15.521 |
| 250 — 999 | 11.967 |
| 1,000 + | 7.49 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| BQ79631PAPRQ1 Datasheet |
More Information
BQ79631-Q1 provides high-accuracy measurement capable of measuring divided down voltages from high voltage nodes such as Pack+ (HV Battery Positive terminal), Fuse, Charge (Port), Link (Load) in a battery junction box (BJB) or battery disconnect unit (BDU) system. Key voltage measurements can make use of the integrated digital low-pass filters. The device has a highly accurate integrated current sense ADC capable of measuring current in low-side shunt resistor. The device is capable of measuring the insulation resistance with internal ADC and able to control any switching scheme needed for this measurement. There are eight GPIOs/auxillary inputs that can be used for thermistor measurement, driving relays, measuring voltages, and being a master SPI interface to peripheral SPI devices. The isolated bi-directional daisy-chain ports support both capacitor or transformer based isolation. The device also supports communication over UART.
