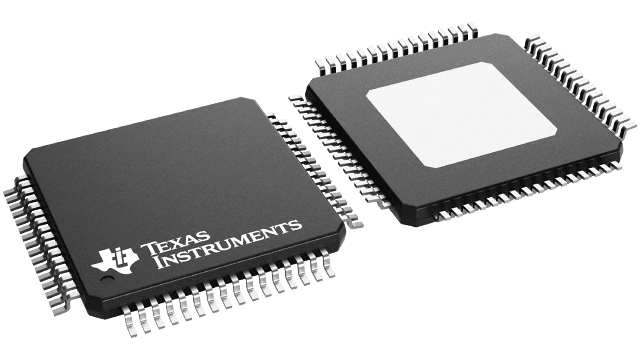

BQ79654PAPRQ1


YeeHing #: Y012-BQ79654PAPRQ1
Inventory: 3200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

BQ79654PAPRQ1 Texas Instruments - Yeehing Electronics

Automotive 14-S precision battery monitors, balancer, current sensor with ASIL-D compliance

Pricing (USD)

Quantity Unit Price
1 — 99 14.442
100 — 249 12.615
250 — 999 9.727
1,000 + 6.09

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

BQ79654PAPRQ1 Datasheet

More Information

The BQ7965x-Q1 family of devices provides high-accuracy cell voltage measurements for a minimum of 6S to a maximum of 12S (BQ79652-Q1), 14S (BQ79654-Q1), or 16S (BQ79656-Q1) battery modules in less than 200 µs while these devices also support shunt-resistor current sense measurement. The integrated front-end filters enable the system to implement with simple, low voltage raring, differential RC filters on the cell input channels. The integrated, post-ADC, low-pass filters enable filtered, DC-like, voltage measurements. This family of devices also supports integrated current sensing capabilities with option to synchronize with cell voltage measurements for better state of charge (SOC) calculation. The device supports autonomous internal cell balancing with temperature monitoring to auto-pause and resume balancing to avoid an overtemperature condition.
