Texas Instruments

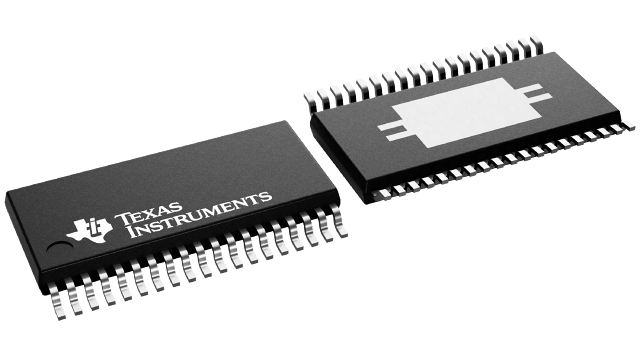

BUF20800AIDCPR
BUF20800AIDCPR
Regular price
$1.82 USD
Regular price
Sale price
$1.82 USD
Unit price
per
Couldn't load pickup availability
BUF20800AIDCPR Texas Instruments - Yeehing Electronics
18-CH Gamma Voltage Generator with Two Programmable VCOM Channels
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.777 |
| 100 — 249 | 3.894 |
| 250 — 999 | 3.061 |
| 1,000 + | 1.82 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LCD Gamma Buffers |
| RoHS | Y |
| Series | BUF20800 |
| Number of Channels | 18 Channel, 2 Channel |
| SR - Slew Rate | - |
| Ib - Input Bias Current | - |
| Vos - Input Offset Voltage | - |
| Supply Voltage - Max | 18 V, 5.5 V |
| Supply Voltage - Min | 7 V, 2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 95 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-38 |
| Packaging | Reel |
| Amplifier Type | Gamma Buffer,VCOM |
| Height | 1.15 mm |
| Length | 9.7 mm |
| Operating Frequency | 3.4 MHz |
| Product | LCD Gamma Buffers |
| Resolution | 10 bit |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| 3 dB Bandwidth | - |
| GBP - Gain Bandwidth Product | - |
| Moisture Sensitive | Yes |
| Output Current per Channel | 40 mA |
| Product Type | LCD Gamma Buffers |
| Factory Pack Quantity | 2000 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.004466 oz |
For more information, please refer to datasheet
Documents
| BUF20800AIDCPR Datasheet |
More Information
The BUF20800 is a programmable voltage reference generator designed for gamma correction in TFT-LCD panels. It provides 18 programmable outputs for gamma correction and two channels for VCOM adjustment, each with 10-bit resolution.
