Texas Instruments
BUF22821AIDCPR
BUF22821AIDCPR
Regular price
$2.00 USD
Regular price
Sale price
$2.00 USD
Unit price
per
Couldn't load pickup availability

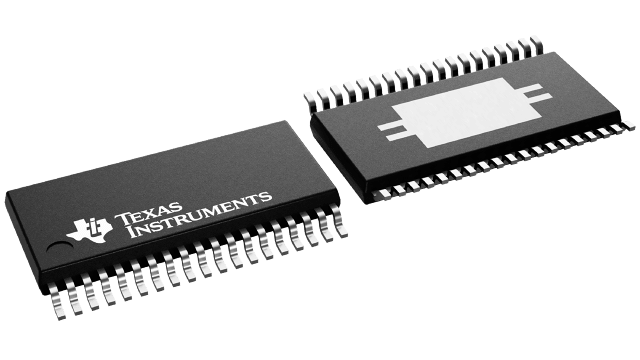

BUF22821AIDCPR Texas Instruments - Yeehing Electronics
22-CH Gamma-Voltage Generator and Vcom Calibrator with Integrated Two-Bank Memory
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.262 |
| 100 — 249 | 4.29 |
| 250 — 999 | 3.372 |
| 1,000 + | 2.00 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LCD Gamma Buffers |
| RoHS | Y |
| Series | BUF22821 |
| Number of Channels | 24 Channel, 2 Channel |
| SR - Slew Rate | - |
| Ib - Input Bias Current | - |
| Vos - Input Offset Voltage | - |
| Supply Voltage - Max | 20 V, 5.5 V |
| Supply Voltage - Min | 9 V, 2 V |
| Operating Supply Current | 18 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 95 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-38 |
| Packaging | Reel |
| Amplifier Type | Gamma Buffer,VCOM |
| Height | 1.15 mm |
| Length | 9.7 mm |
| Operating Frequency | 3.4 MHz |
| Product | LCD Gamma Buffers |
| Resolution | 10 bit |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Interface Type | Serial, I2C |
| Shutdown | No Shutdown |
| 3 dB Bandwidth | - |
| Development Kit | BUF22821EVM-USB |
| GBP - Gain Bandwidth Product | - |
| Moisture Sensitive | Yes |
| Output Current per Channel | 10 mA, 100 mA |
| Product Type | LCD Gamma Buffers |
| Factory Pack Quantity | 2000 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.004441 oz |
For more information, please refer to datasheet
Documents
| BUF22821AIDCPR Datasheet |
More Information
The BUF22821 offers 22 programmable gamma channels, two programmable VCOM channels, and two static gamma channels. It is ideal for the new 10-bit source drivers that require 22 gamma channels.
