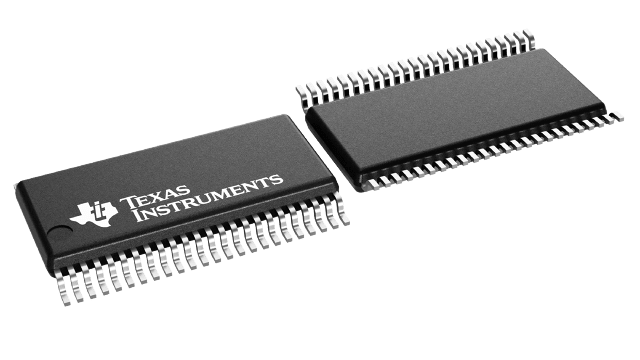

CAVC16T245QDGVRQ1 Texas Instruments - Yeehing Electronics
Automotive 16-Bit Dual-Supply Bus Transceiver With Configurable Voltage Translation
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.652 |
100 — 249 | 1.448 |
250 — 999 | 1.015 |
1,000 + | 0.57 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
CAVC16T245QDGVRQ1 Datasheet |
More Information
The SN74AVC16T245-Q1 is a 16-bit noninverting bus transceiver that uses two separate configurable power-supply rails. The SN74AVC16T245-Q1 is optimized to operate with VCCA or VCCB set at 1.4 V to 3.6 V. It is operational with VCCA or VCCB as low as 1.2 V. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2 V to 3.6 V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, and 3.3-V voltage nodes.
