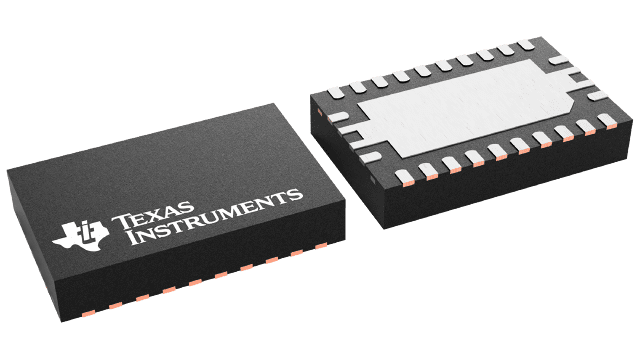

CAVC8T245QRHLRQ1 Texas Instruments - Yeehing Electronics
Automotive Catalog 8-Bit Dual-Supply Bus Transceiver w/ Configurable Voltage Transl., 3-State Output
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.234 |
| 100 — 249 | 1.081 |
| 250 — 999 | 0.758 |
| 1,000 + | 0.43 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Translation - Voltage Levels |
| RoHS | Y |
| Propagation Delay Time | 2.5 ns |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-24 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Data Rate | 320 Mb/s |
| Features | Partial power down (Ioff), Over-voltage tolerant inputs, Output enable, Output damping resistors |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | 3-State |
| Series | SN74AVC8T245-Q1 |
| Brand | Texas Instruments |
| Logic Family | AVC |
| Logic Type | CMOS |
| High Level Output Current | 12 mA |
| Low Level Output Current | 12 mA |
| Moisture Sensitive | Yes |
| Product Type | Translation - Voltage Levels |
| Factory Pack Quantity | 1000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001767 oz |
For more information, please refer to datasheet
Documents
| CAVC8T245QRHLRQ1 Datasheet |
More Information
The SN74AVC8T245-Q1 is an 8-bit noninverting bus transceiver that uses two separate configurable power-supply rails. The SN74AVC8T245-Q1 operation is optimimal with VCCA and VCCB set at
