Description

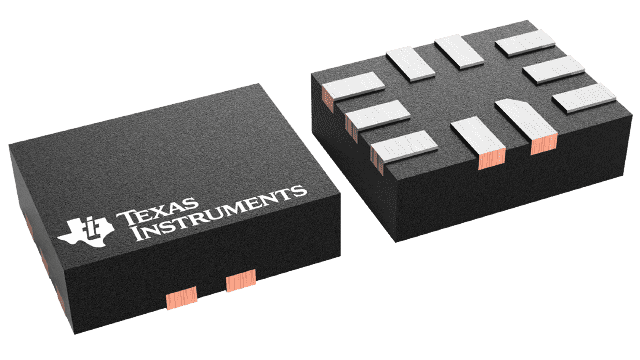

CAXC2T245QRSWRQ1 Texas Instruments - Yeehing Electronics
Automotive dual-bit dual-supply voltage level translation w/ independent DIR control, 3-State output
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.882 |
| 100 — 249 | 0.678 |
| 250 — 999 | 0.499 |
| 1,000 + | 0.25 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| CAXC2T245QRSWRQ1 Datasheet |
More Information
The SN74AXC2T245-Q1 is a two-bit noninverting bus transceiver that uses two individually configurable power-supply rails. The device is operational with both VCCA and VCCB supplies as low as 0.65 V. The A port is designed to track VCCA, which accepts any supply voltage from 0.65 V to 3.6 V. The B port is designed to track VCCB, which also accepts any supply voltage from 0.65 V to 3.6 V. Additionally the SN74AXC2T245-Q1 is compatible with a single-supply system.
