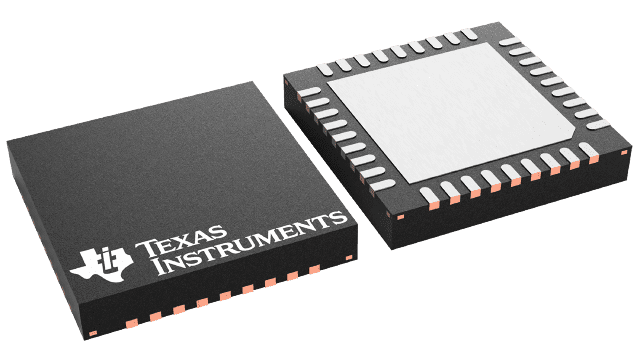

CC1110F16RHHT


YeeHing #: Y016-CC1110F16RHHT
Inventory: 6200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

CC1110F16RHHT Texas Instruments - Yeehing Electronics

Sub-1 GHz wireless MCU with up to 32 kB Flash memory

Pricing (USD)

Quantity Unit Price
1 — 99 4.802
100 — 249 3.915
250 — 999 3.077
1,000 + 1.83

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category RF System on a Chip - SoC
RoHS Y
Type ISM
Core 8051
Operating Frequency 300 MHz to 348 MHz, 391 MHz to 464 MHz, 782 MHz to 928 MHz
Maximum Data Rate 500 kb/s
Output Power 10 dBm
Sensitivity - 112 dBm
Operating Supply Voltage 2 V to 3.6 V
Supply Current Receiving 16.2 mA
Program Memory Size 16 kB
Operating Temperature Range - 40 C to + 85 C
Package / Case VQFN-36
Packaging Reel
Program Memory Type Flash
Series CC1110-CC1111
Brand Texas Instruments
Data RAM Size 2 kB
Data RAM Type RAM
Interface Type I2s, UART, USB
Mounting Style SMD/SMT
Number of I/Os 21 I/O
Maximum Operating Temperature + 85 C
Minimum Operating Temperature - 40 C
Moisture Sensitive Yes
Number of Timers 5 Timer
Processor Series CC1110Fx
Product Type RF System on a Chip - SoC
Factory Pack Quantity 250
Subcategory Wireless & RF Integrated Circuits
Unit Weight 0.003728 oz

For more information, please refer to datasheet

Documents

CC1110F16RHHT Datasheet

More Information

The CC1110Fx, CC1111Fx is a true low-power sub- 1 GHz system-on-chip (SoC) designed for low power wireless applications. The CC1110Fx, CC1111Fx combines the excellent performance of the state-of-the-art RF transceiver CC1101 with an industry-standard enhanced 8051 MCU, up to 32 kB of in-system programmable flash memory and up to 4 kB of RAM, and many other powerful features. The small 6x6 mm package makes it very suited for applications with size limitations.
