Texas Instruments

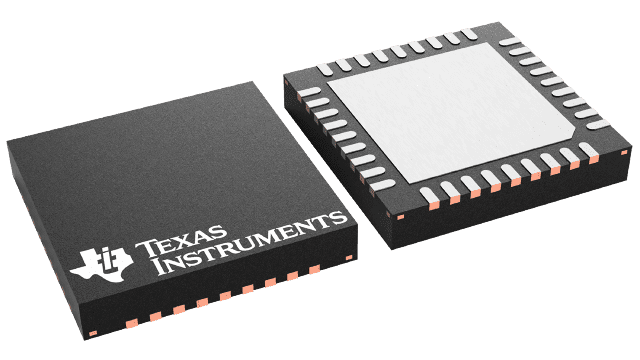

CC1110F32RHHT
CC1110F32RHHT
Regular price
$1.97 USD
Regular price
Sale price
$1.97 USD
Unit price
per
Couldn't load pickup availability
CC1110F32RHHT Texas Instruments - Yeehing Electronics
Sub-1 GHz wireless MCU with up to 32 kB Flash memory
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.187 |
| 100 — 249 | 4.229 |
| 250 — 999 | 3.324 |
| 1,000 + | 1.97 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF System on a Chip - SoC |
| RoHS | Y |
| Type | ISM |
| Core | 8051 |
| Operating Frequency | 300 MHz to 348 MHz, 391 MHz to 464 MHz, 782 MHz to 928 MHz |
| Maximum Data Rate | 500 kb/s |
| Output Power | 10 dBm |
| Sensitivity | - 112 dBm |
| Operating Supply Voltage | 2 V to 3.6 V |
| Supply Current Receiving | 16.2 mA |
| Program Memory Size | 32 kB |
| Operating Temperature Range | - 40 C to + 85 C |
| Package / Case | VQFN-36 |
| Packaging | Reel |
| Program Memory Type | Flash |
| Series | CC1110-CC1111 |
| Brand | Texas Instruments |
| Data RAM Size | 4 kB |
| Data RAM Type | RAM |
| Interface Type | I2s, UART, USB |
| Mounting Style | SMD/SMT |
| Number of I/Os | 21 I/O |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Moisture Sensitive | Yes |
| Number of Timers | 5 Timer |
| Processor Series | CC1110Fx |
| Product Type | RF System on a Chip - SoC |
| Factory Pack Quantity | 250 |
| Subcategory | Wireless & RF Integrated Circuits |
| Unit Weight | 0.003728 oz |
For more information, please refer to datasheet
Documents
| CC1110F32RHHT Datasheet |
More Information
The CC1110Fx, CC1111Fx is a true low-power sub- 1 GHz system-on-chip (SoC) designed for low power wireless applications. The CC1110Fx, CC1111Fx combines the excellent performance of the state-of-the-art RF transceiver CC1101 with an industry-standard enhanced 8051 MCU, up to 32 kB of in-system programmable flash memory and up to 4 kB of RAM, and many other powerful features. The small 6x6 mm package makes it very suited for applications with size limitations.
