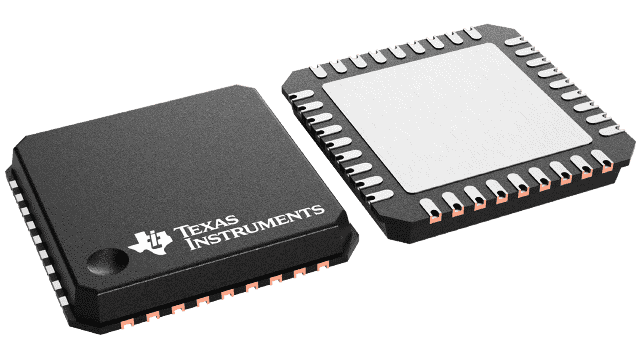

CC1111F32RSPR Texas Instruments - Yeehing Electronics
Sub-1 GHz wireless MCU with up to 32 kB Flash memory
Pricing (USD)
Quantity | Unit Price |
1 — 99 | None |
100 — 249 | None |
250 — 999 | None |
1,000 + | None |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | RF System on a Chip - SoC |
RoHS | Y |
Type | ISM |
Core | 8051 |
Operating Frequency | 300 MHz, 391 MHz, 782 MHz to 348 MHz, 464 MHz, 928 MHz |
Maximum Data Rate | 500 kb/s |
Output Power | 10 dBm |
Sensitivity | - 112 dBm |
Supply Current Receiving | 16.2 mA |
Program Memory Size | 32 kB |
Operating Temperature Range | - 40 C to + 85 C |
Package / Case | QFN-36 |
Packaging | Reel |
Series | CC1110-CC1111 |
Brand | Texas Instruments |
Data RAM Size | 4 kB |
Mounting Style | SMD/SMT |
Maximum Operating Temperature | + 85 C |
Minimum Operating Temperature | - 40 C |
Moisture Sensitive | Yes |
Product Type | RF System on a Chip - SoC |
Factory Pack Quantity | 2500 |
Subcategory | Wireless & RF Integrated Circuits |
Unit Weight | 0.003266 oz |
For more information, please refer to datasheet
Documents
CC1111F32RSPR Datasheet |
More Information
The CC1110Fx, CC1111Fx is a true low-power sub- 1 GHz system-on-chip (SoC) designed for low power wireless applications. The CC1110Fx, CC1111Fx combines the excellent performance of the state-of-the-art RF transceiver CC1101 with an industry-standard enhanced 8051 MCU, up to 32 kB of in-system programmable flash memory and up to 4 kB of RAM, and many other powerful features. The small 6x6 mm package makes it very suited for applications with size limitations.
