Texas Instruments

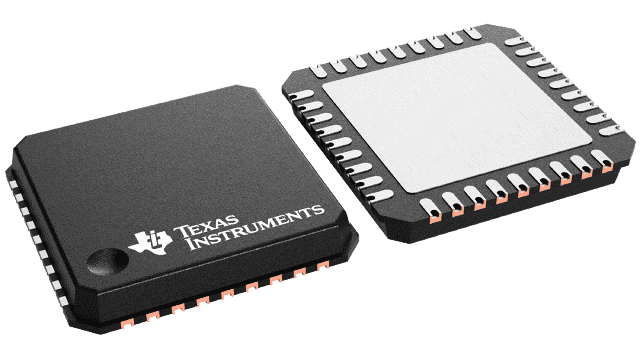

CC2511F16RSP
CC2511F16RSP
Regular price
$2.28 USD
Regular price
Sale price
$2.28 USD
Unit price
per
Couldn't load pickup availability
CC2511F16RSP Texas Instruments - Yeehing Electronics
2.4 GHz Radio Transceiver, 8051 MCU, 16KB or 32KB Flash memory and full-speed USB interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.004 |
| 100 — 249 | 4.895 |
| 250 — 999 | 3.847 |
| 1,000 + | 2.28 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF System on a Chip - SoC |
| RoHS | Y |
| Type | Wi-Fi |
| Core | 8051 |
| Operating Frequency | 2.4 GHz to 2.4835 GHz |
| Maximum Data Rate | 12 Mb/s |
| Output Power | 1 dBm |
| Sensitivity | - 103 dBm |
| Operating Supply Voltage | 2 V to 3.6 V |
| Supply Current Receiving | 17.1 mA |
| Program Memory Size | 16 kB |
| Operating Temperature Range | - 50 C to + 150 C |
| Package / Case | QFN-36 |
| Packaging | Tray |
| Height | 1 mm |
| Length | 6.1 mm |
| Program Memory Type | Non-Volatile |
| Series | CC2511 |
| Width | 6.1 mm |
| Brand | Texas Instruments |
| Data RAM Size | 2 kB |
| Data RAM Type | RAM |
| Interface Type | 3-Wire SPI |
| Mounting Style | SMD/SMT |
| Number of I/Os | 19 I/O |
| ADC Resolution | 7 bit to 12 bit |
| Data Bus Width | 8 bit |
| Maximum Clock Frequency | 2483.5 MHz |
| Maximum Operating Temperature | + 150 C |
| Minimum Operating Temperature | - 50 C |
| Moisture Sensitive | Yes |
| Number of Timers | 3 Timer |
| Processor Series | CC2511Fx |
| Product Type | RF System on a Chip - SoC |
| Factory Pack Quantity | 490 |
| Subcategory | Wireless & RF Integrated Circuits |
| Unit Weight | 0.003266 oz |
For more information, please refer to datasheet
Documents
| CC2511F16RSP Datasheet |
More Information
The CC2510Fx/CC2511Fx is a true low-cost 2.4 GHz system-on-chip (SoC) designed for lowpower wireless applications. The CC2510Fx/CC2511Fx combines the excellent performance of the state-of-the-art RF transceiver CC2500 with an industry-standard enhanced 8051 MCU, up to 32 kB of in-system programmable flash memory and 4 kB of RAM, and many other powerful features. The small 6x6 mm package makes it very suited for applications with size limitations.
