CC2538NF11RTQT Texas Instruments - Yeehing Electronics

32-bit Arm Cortex-M3 Zigbee, 6LoWPAN, and IEEE 802.15.4 wireless MCU with 512kB Flash and 32kB RAM

Pricing (USD)

Quantity	Unit Price
1 — 99	8.645
100 — 249	7.552
250 — 999	5.823
1,000 +	3.65

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	RF System on a Chip - SoC
RoHS	Y
Operating Frequency	2.4 GHz
Maximum Data Rate	250 kb/s
Output Power	7 dBm
Sensitivity	- 97 dBm
Operating Supply Voltage	2 V to 3.6 V
Operating Temperature Range	- 40 C to + 125 C

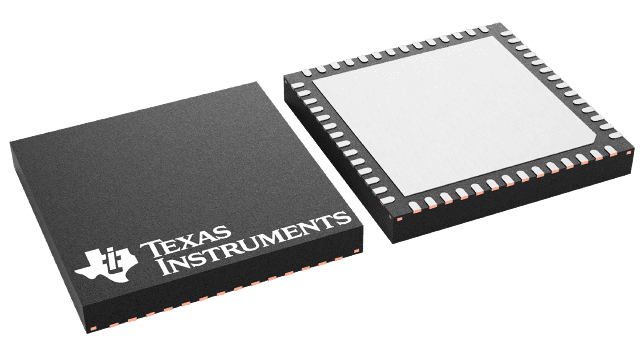

Package / Case	QFN-56
Packaging	Reel
Series	CC2538
Brand	Texas Instruments
Mounting Style	SMD/SMT
Development Kit	CC2538DK
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Moisture Sensitive	Yes
Product Type	RF System on a Chip - SoC
Factory Pack Quantity	250
Subcategory	Wireless & RF Integrated Circuits
Unit Weight	0.007055 oz

For more information, please refer to datasheet

Documents

CC2538NF11RTQT Datasheet

More Information

The CC2538xFnn is the ideal wireless microcontroller System-on-Chip (SoC) for high-performance ZigBee applications. The device combines a powerful ARM Cortex-M3-based MCU system with up to 32KB on-chip RAM and up to 512KB on-chip flash with a robust IEEE 802.15.4 radio. This enables the device to handle complex network stacks with security, demanding applications, and over-the-air download. Thirty-two GPIOs and serial peripherals enable simple connections to the rest of the board. The powerful hardware security accelerators enable quick and efficient authentication and encryption while leaving the CPU free to handle application tasks. The multiple low-power modes with retention enable quick startup from sleep and minimum energy spent to perform periodic tasks. For a smooth development, the CC2538xFnn includes a powerful debugging system and a comprehensive driver library. To reduce the application flash footprint, CC2538xFnn ROM includes a utility function library and a serial boot loader. Combined with the robust and comprehensive Z-Stack software solutions from TI, the CC2538 provides the most capable and proven ZigBee solution in the market.
